But is that possible if the ECU needs to “learn” every mod for 50-100 miles before a true result can be seen?

Does anyone here have a copy of the “forbidden knowledge” @VF Tuner posted about this ecu Learning topic, JB4, oem v6 ecu that was later removed by mods?

I am a fan of open sharing of relevant information.

Not criticizing mods for doing their thing, understand why they did it, generally agree that it wasn’t best location for that post.

But the info in the post itself would be valuable to this community as we make important decisions about what (if any) risks to run with our expensive toys.

If it was relocated and I haven’t found it, I’d appreciate if anyone could steer me properly!



[Tomwa]

No i don't believe VF re-posted his concerns about how JB4 works or does not work anywhere else. I agree I think it is fair discussion but not in the vendors thread about the product (if its not something the self volunteer or are just responding to inquires rather than stated presumptions or facts slung as accusations or claims towards it being somehow dangerous or a bad product)



[ej20wagon]

I have tried searching for this, but does anyone have a picture of how to route the OBD2 cable through the firewall? Did you have to take apart the rear area in the cabin to route the cable?



[K_Squared]

@ej20wagon - You do have to pop out the rear side panel (pretty easy) and the panel directly underneath the back window to route the cable through but you don't really have to completely remove that piece. I followed JB4's instructions here:

https://www.jb4tuned.com/instructions/Lotus-3.5LV6SC-JB4-Install-Guide.pdf



[UK-EM 🇬🇧]

@Eagle7 good read. Thank you.

Can I ask, did you keep the OBD connected? It seems that besides the data logging, it’s not providing much benefit? I only plan to use map2 and nothing above however I’m wondering if it’s worth my time routing the cable when I can simply run it out the window if I need to data log.



[Eagle7]

@Eagle7 good read. Thank you.

Can I ask, did you keep the OBD connected? It seems that besides the data logging, it’s not providing much benefit? I only plan to use map2 and nothing above however I’m wondering if it’s worth my time routing the cable when I can simply run it out the window if I need to data log.

Yes, I've kept it connected. It does more than data log. It allows the JB4 to see all the live data that the ECU sees, and adjust accordingly. Honestly, the car idles and runs much smoother with the JB4 than the factory tune.



[UK-EM 🇬🇧]

Yes, I've kept it connected. It does more than data log. It allows the JB4 to see all the live data that the ECU sees, and adjust accordingly. Honestly, the car idles and runs much smoother with the JB4 than the factory tune.

Seeing conflicting details on needing it connected 24:7. Are you EU based? I’ve just seen the standard cable isn’t long enough to reach RHD OBD port which is a shame, I also tried the grommet fit but it seems it’s blocked the other side… not sure if that’s an EU spec’d car issue or not. None the less I’ll ask the company but I just data logged then unplugged it. I read people are using it without the OBD plug in.



[SimonT]

Seeing conflicting details on needing it connected 24:7. Are you EU based? I’ve just seen the standard cable isn’t long enough to reach RHD OBD port which is a shame, I also tried the grommet fit but it seems it’s blocked the other side… not sure if that’s an EU spec’d car issue or not. None the less I’ll ask the company but I just data logged then unplugged it. I read people are using it without the OBD plug in.

Extension cables are pretty cheap

https://www.amazon.co.uk/dp/B0CJ2VCNM6/ref=sspa_mw_detail_0?ie=UTF8&psc=1&sp_csd=d2lkZ2V0TmFtZT1zcF9waG9uZV9kZXRhaWw&aref=CIhTrNl7tg&sp_cr=ZAZ



[virtualmacho]

You will need to have OBD connected if you want to see all the colorful dials working In the app. Oh, and use "Boost2" Instead of "Boost" for the V6 at least.



[UK-EM 🇬🇧]

You will need to have OBD connected if you want to see all the colorful dials working In the app. Oh, and use "Boost2" Instead of "Boost" for the V6 at least.

Boost2? I see only to load different maps on the app



[virtualmacho]

Boost2? I see only to load different maps on the app



[UK-EM 🇬🇧]

View attachment 74447

That’s map1 boost 2. I’ll be running map 2



[virtualmacho]

That’s map1 boost 2. I’ll be running map 2

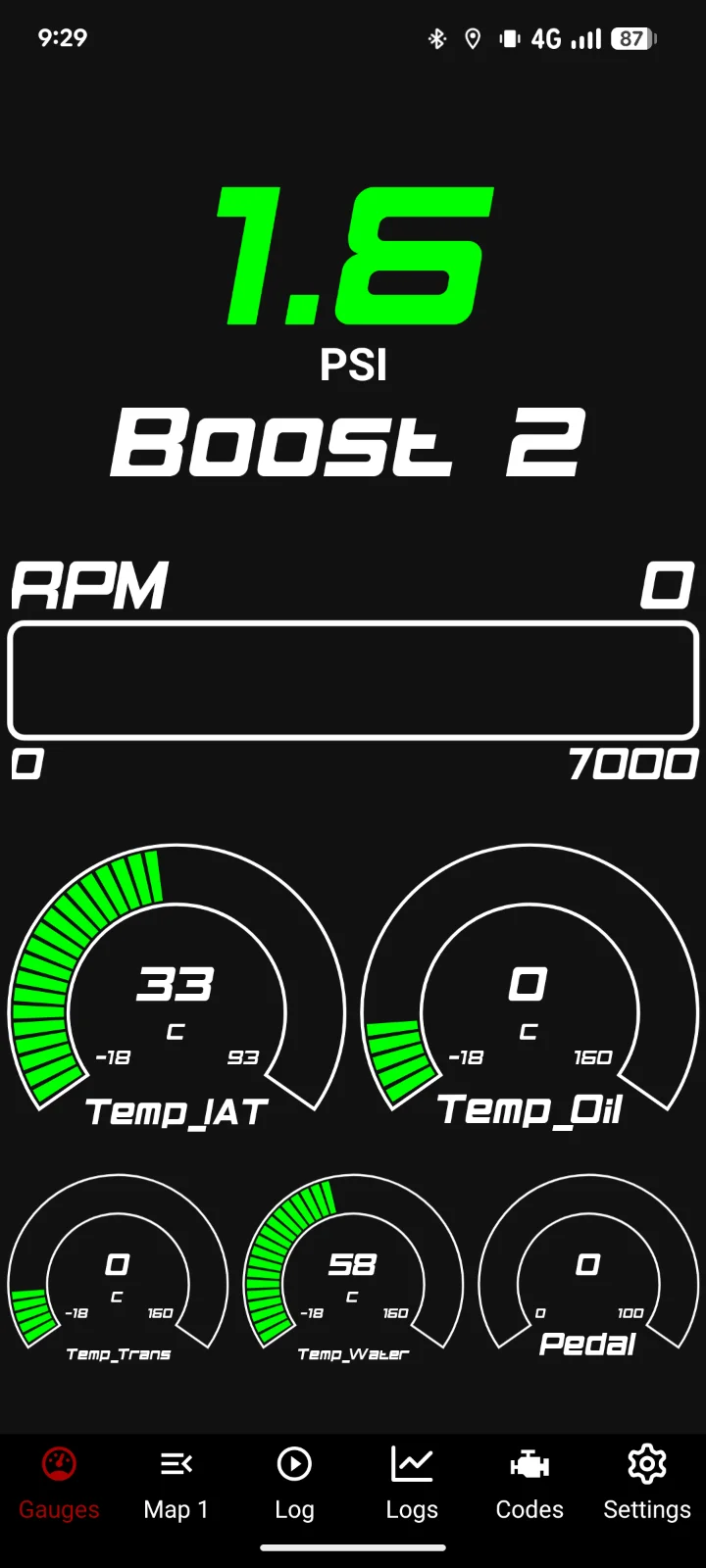

”Boost” and "Boost2" are names of variables monitored, shown, and stored in the JB4's memory. The default gauges are configured to show "Boost" at the top of the screen, but the Emira does not populate that variable and that gauge just sits there showing nothing. Variable "Boost2" has data in it, and configuring the gauges to show this will make it more enjoyable.



[Eagle7]

Seeing conflicting details on needing it connected 24:7. Are you EU based? I’ve just seen the standard cable isn’t long enough to reach RHD OBD port which is a shame, I also tried the grommet fit but it seems it’s blocked the other side… not sure if that’s an EU spec’d car issue or not. None the less I’ll ask the company but I just data logged then unplugged it. I read people are using it without the OBD plug in.

I used a piece of coaxial cable, taped the end of the JB4 cable to it, and pushed it through the grommet area. It does come out but way down below. Use one of these to fetch and pull it up until you can grab it with your hand. This tool is handy to have anyways, especially if you work on your own car.

Amazon.com: 3 Pack Pick-up Tool Set - Extendable Magnetic Pick Up Tools and Flexible Grabber Claw - Retrieving Telescoping Magnet Pickup Tools - Flexible Extra Long Reach Bendable Curve Grabber with 4 Claws : Health & Household

Buy 3 Pack Pick-up Tool Set - Extendable Magnetic Pick Up Tools and Flexible Grabber Claw - Retrieving Telescoping Magnet Pickup Tools - Flexible Extra Long Reach Bendable Curve Grabber with 4 Claws: Reaching Aids - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com



[MTV]

OK, that was totally worth doing!!!!!



[V6 6MT]

OK, that was totally worth doing!!!!!

Installing JB4? Can you provide more feedback?



[MTV]

Installing JB4? Can you provide more feedback?

OK, a few things.

1. Definitely use the bracket from GRP.
2. Mounting the bracket is far harder than the video I found. The bolts are for one of the struts so once removed for me my one went out of alignment. Have someone hold the tailgate whilst refitting. Yes I did originally remove only one bolt but I did loosen both to start so that may be a better approach.
3. I drilled out the bracket mounting holes to 6.5mm to help. Shouldn't be needed. However, I did not want to damage any threads so took every precaution.
4. I removed the plastic trim above these holes to see better.
5. Use Loctite Blue on everything.
6. Drilled a 12 mm hole through firewall to get OBD cable through. Used a rubber blind gromit cutting a hole in it and pushed into firewall.
7. Left hand drive cars dont go down passenger side, still go down drivers side.

Works great. 38degC (100degF) day here so if anything wasnt going to be happy this would be a good day to see. It all ran smoothly. Started in Map1 which isn't really much. Let the car warm up over 15 minutes then stepped through the maps. Map 3 really is nuts. Amazing how much Lotus left on the table really. But it takes it to 911 Turbo level which is one of my own benchmarks for quality and performance.



[mr.suntorytime]

OK, a few things.

1. Definitely use the bracket from GRP.
2. Mounting the bracket is far harder than the video I found. The bolts are for one of the struts so once removed for me my one went out of alignment. Have someone hold the tailgate whilst refitting. Yes I did originally remove only one bolt but I did loosen both to start so that may be a better approach.
3. I drilled out the bracket mounting holes to 6.5mm to help. Shouldn't be needed. However, I did not want to damage any threads so took every precaution.
4. I removed the plastic trim above these holes to see better.
5. Use Loctite Blue on everything.
6. Drilled a 12 mm hole through firewall to get OBD cable through. Used a rubber blind gromit cutting a hole in it and pushed into firewall.
7. Left hand drive cars dont go down passenger side, still go down drivers side.

Works great. 38degC (100degF) day here so if anything wasnt going to be happy this would be a good day to see. It all ran smoothly. Started in Map1 which isn't really much. Let the car warm up over 15 minutes then stepped through the maps. Map 3 really is nuts. Amazing how much Lotus left on the table really. But it takes it to 911 Turbo level which is one of my own benchmarks for quality and performance.

yeah best practice is to leave one as is and remove one to get part of the bracket installed and do up that bolt. once thats done you move to the next so the alignment stays consistent.



[kitkat]

2. Mounting the bracket is far harder than the video I found. The bolts are for one of the struts so once removed for me my one went out of alignment. Have someone hold the tailgate whilst refitting. Yes I did originally remove only one bolt but I did loosen both to start so that may be a better approach.

Yeah that guy who made the video made it look so easy. The ladies must love him if he’s that good with his hands.



[mr.suntorytime]

Hes very fast indeed
