In the Evora 400 series, Lotus included the fitting of an oil cooler system, based upon Toyota standard parts. Do we know if a gearbox oil cooler system is fitted to the Emira.

Solution
I think he is confused on that, I don’t think that is the same as the Evora Toyota based system. Which uses I believe the returned charge cooler circuit at the engine to cool the gear oil via a piped pumped system of Toyota parts, as described by the Lotus Guru - YouTube video.

Unless this is an entirely different system, in my eyes that radiator matrix size is for the air conditioning condenser system? IMHO.
That front right radiator is engine oil cooling.
The air-con condenser is in a sandwich with the engine coolant rad and the charge cooler rad in the main front intake.
Manual gearbox oil cooler is a oil to water type that sits on top of the gearbox.
Auto cars have an additional gearbox oil radiator in the front left...
In the Evora 400 series, Lotus included the fitting of an oil cooler system, based upon Toyota standard parts. Do we know if a gearbox oil cooler system is fitted to the Emira.
I remember this being mentioned specifically in a video within the past few months. I'm pretty confident that it does have one.

From everything that I have read and understand, the Emira drivetrain (the whole thing) is a mild evolution of the same full system used in the last iterations of the Evora.

  • Thread Starter
  • Thread starter
  • #3
I remember this being mentioned specifically in a video within the past few months. I'm pretty confident that it does have one.

From everything that I have read and understand, the Emira drivetrain (the whole thing) is a mild evolution of the same full system used in the last iterations of the Evora.
Gosh I hope so. The only video I saw this in was on YouTube - “The Lotus Guru” based upon Evora development. Yes you are correct that the latest versions of Evora have this system. I do hope it has it.

Gosh I hope so. The only video I saw this in was on YouTube - “The Lotus Guru” based upon Evora development. Yes you are correct that the latest versions of Evora have this system. I do hope it has it.
I think it was mentioned in Harry Metcalfe's factory visit video.

I think it was mentioned in Harry Metcalfe's factory visit video.

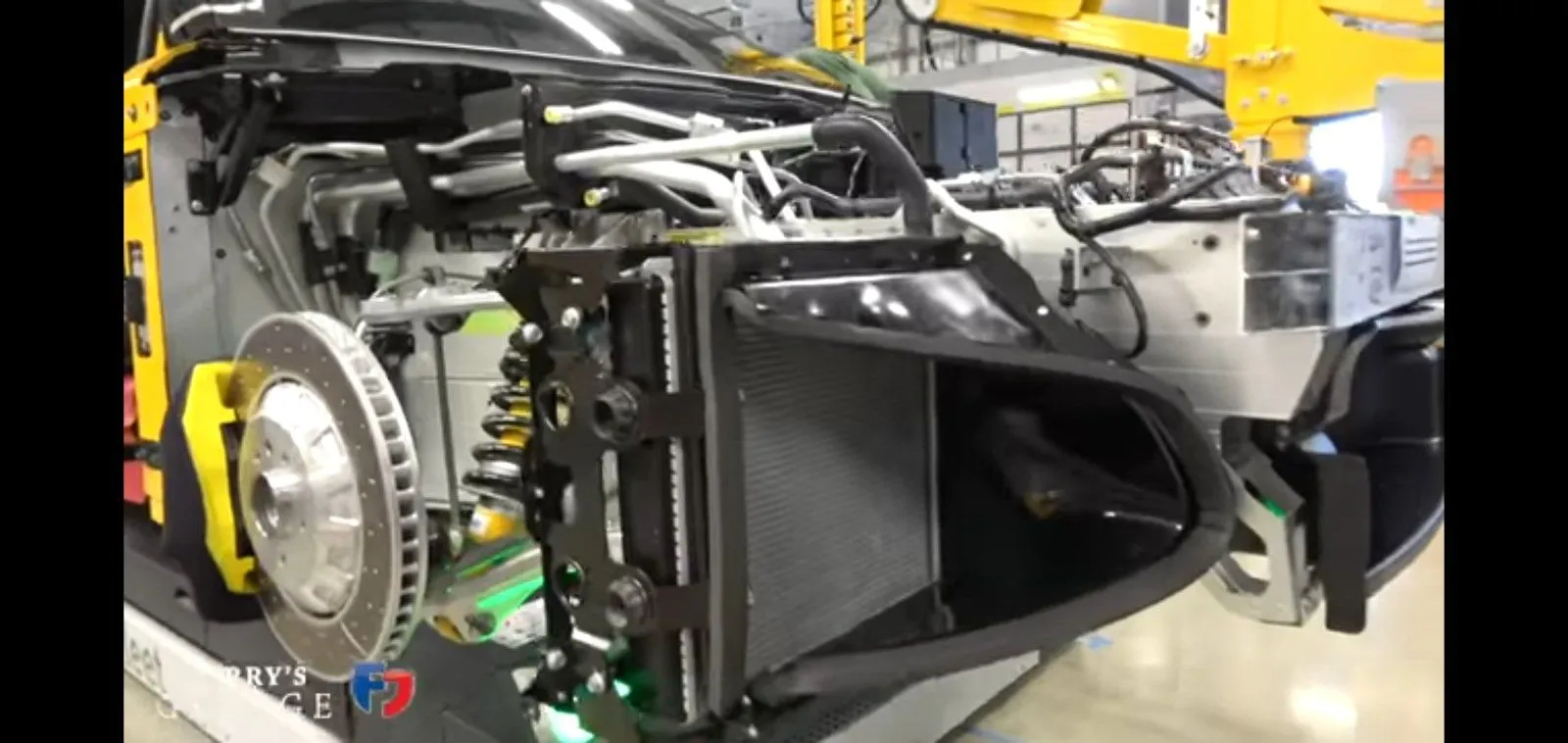

It was.. The part when he attempted to uncover the side mount radiator, then finds out its actually an oil cooler. It's at ~12:50 in this video...



  • Thread Starter
  • Thread starter
  • #6
It was.. The part when he attempted to uncover the side mount radiator, then finds out its actually an oil cooler. It's at ~12:50 in this video...


View attachment 20030
I think he is confused on that, I don’t think that is the same as the Evora Toyota based system. Which uses I believe the returned charge cooler circuit at the engine to cool the gear oil via a piped pumped system of Toyota parts, as described by the Lotus Guru - YouTube video.

Unless this is an entirely different system, in my eyes that radiator matrix size is for the air conditioning condenser system? IMHO.

I think he is confused on that, I don’t think that is the same as the Evora Toyota based system. Which uses I believe the returned charge cooler circuit at the engine to cool the gear oil via a piped pumped system of Toyota parts, as described by the Lotus Guru - YouTube video.

Unless this is an entirely different system, in my eyes that radiator matrix size is for the air conditioning condenser system? IMHO.
That front right radiator is engine oil cooling.
The air-con condenser is in a sandwich with the engine coolant rad and the charge cooler rad in the main front intake.
Manual gearbox oil cooler is a oil to water type that sits on top of the gearbox.
Auto cars have an additional gearbox oil radiator in the front left intake.
All as per the Evora 4xx cars.

Solution
  • Thread Starter
  • Thread starter
  • #8
That front right radiator is engine oil cooling.
The air-con condenser is in a sandwich with the engine coolant rad and the charge cooler rad in the main front intake.
Manual gearbox oil cooler is a oil to water type that sits on top of the gearbox.
Auto cars have an additional gearbox oil radiator in the front left intake.
All as per the Evora 4xx cars.
guess that clears it up about the gearbox oil cooler being the same as Evora.
Interesting about the engine oil cooler, didn’t know that.
Yes the A/C condenser more than likely sandwiched between water radiator, seen that many times on various cars.
Many thanks for the information. Excellent.

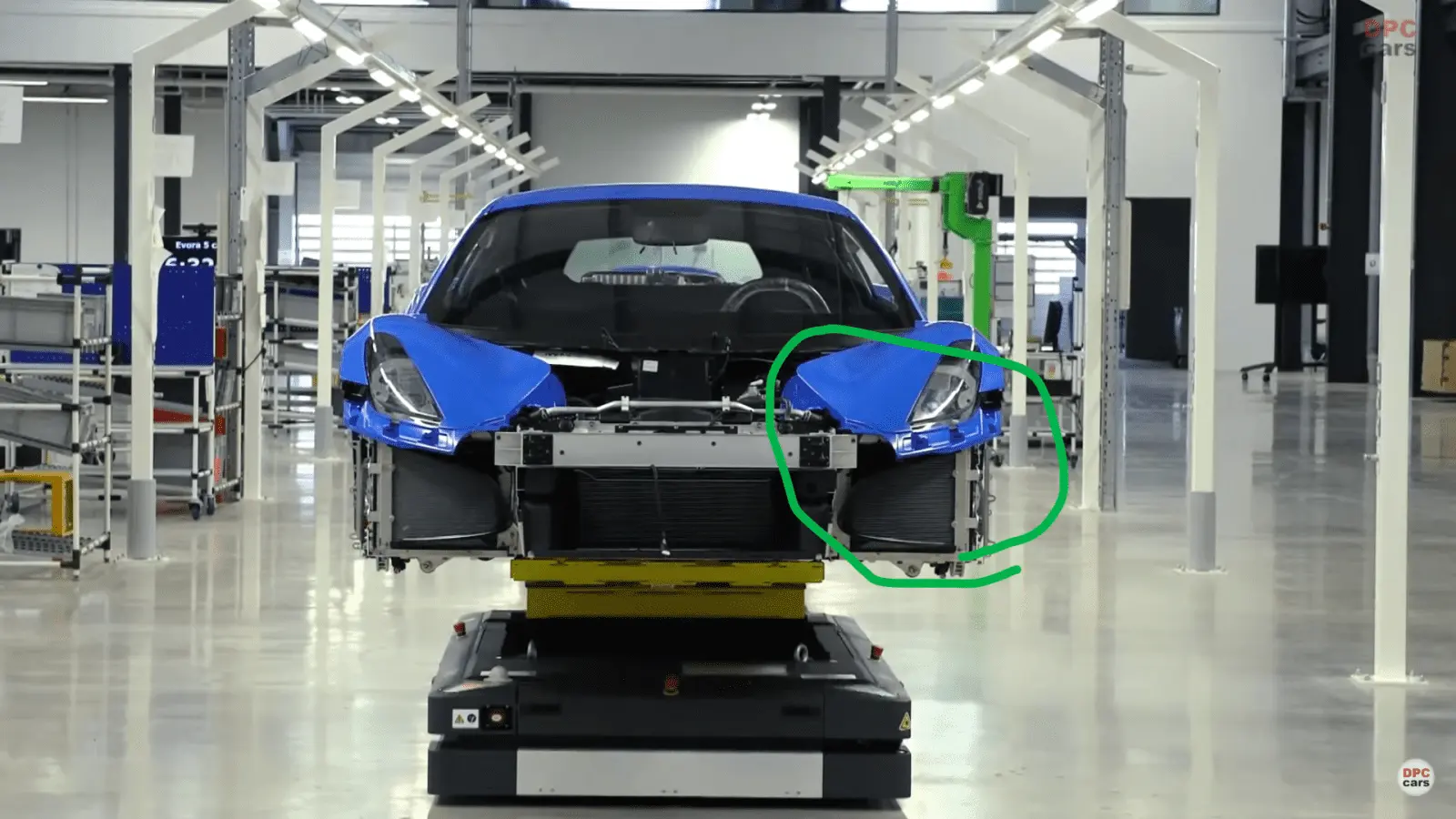

I'm still confused:unsure: about the air intake on the left side of the front of the car, because there seems to be only a metal frame here, without any radiators (see Harry's visit video). But in a video from a long time ago, the air intake on the left side of the front of the car obviously has a square cooler that is symmetrical to the right side.
as the picture shows:

Last edited:
  • Thread Starter
  • Thread starter
  • #12
That’s because Harry’s car is a manual with the gearbox oil cooler hidden away in the engine bay.

Only auto cars have the left hand oil radiator. The blue car in your photo is therefore an auto.
So we have probably different cooling scenarios dependent upon which car we have.

The systems requiring cooling would seem to be as follows:

Engine cooling water based system
A/C condenser unit
Supercharger intercooler system
Engine oil - cooler radiator

Now we could have an Autobox oil cooler

Does the I4 engine require any further cooling?

We know V6 manual has gearbox mounted oil cooler - based on the Evora Toyota equipment system.

So the front end is well packaged. Have I missed anything. KEF audio amplifier cooling due to its immense power output? Just kidding🤔

So we have probably different cooling scenarios dependent upon which car we have.

The systems requiring cooling would seem to be as follows:

Engine cooling water based system
A/C condenser unit
Supercharger intercooler system
Engine oil - cooler radiator

Now we could have an Autobox oil cooler

Does the I4 engine require any further cooling?

We know V6 manual has gearbox mounted oil cooler - based on the Evora Toyota equipment system.

So the front end is well packaged. Have I missed anything. KEF audio amplifier cooling due to its immense power output? Just kidding🤔
The engine draws air from next to the left door. There's also an air intake on the right, maybe for the intercooler for the turbo?

The engine draws air from next to the left door. There's also an air intake on the right, maybe for the intercooler for the turbo?

Maybe. It'd be cool if the AMG setup featured a top mount intercooler like the STIs and had a roof scoop to feed air through it! 😎

now wouldn’t that be cool, and a carbon rear tailgate and ducktail, designed to prevent water pooling.🤣🤣

I really hope the aftermarket goes crazy with this car. :devilish: Imagine a 500WHP Emira slimmed down to ~3k lbs flat (or less)! That thing would be a beast!

That front right radiator is engine oil cooling.
The air-con condenser is in a sandwich with the engine coolant rad and the charge cooler rad in the main front intake.
Manual gearbox oil cooler is a oil to water type that sits on top of the gearbox.
Auto cars have an additional gearbox oil radiator in the front left intake.
All as per the Evora 4xx cars.
Having seen the Service Notes I’m feeling the need to correct myself with this.

They have changed things a bit from the Evora.

That front right radiator is now the chargecooler rad and the engine oil cooler is now a oil to water heat exchanger type in the engine bay.
It sits on the front of the rear subframe next to a revised gearbox oil cooler that’s been moved there from the top of the gearbox.

Both can be seen in this pic:



That leaves just the coolant radiator and the a/c condenser in the front centre.

That’ll teach me to assume it’s just a re-hashed Evora. 😁

Having seen the Service Notes I’m feeling the need to correct myself with this.

They have changed things a bit from the Evora.

That front right radiator is now the chargecooler rad and the engine oil cooler is now a oil to water heat exchanger type in the engine bay.
It sits on the front of the rear subframe next to a revised gearbox oil cooler that’s been moved there from the top of the gearbox.

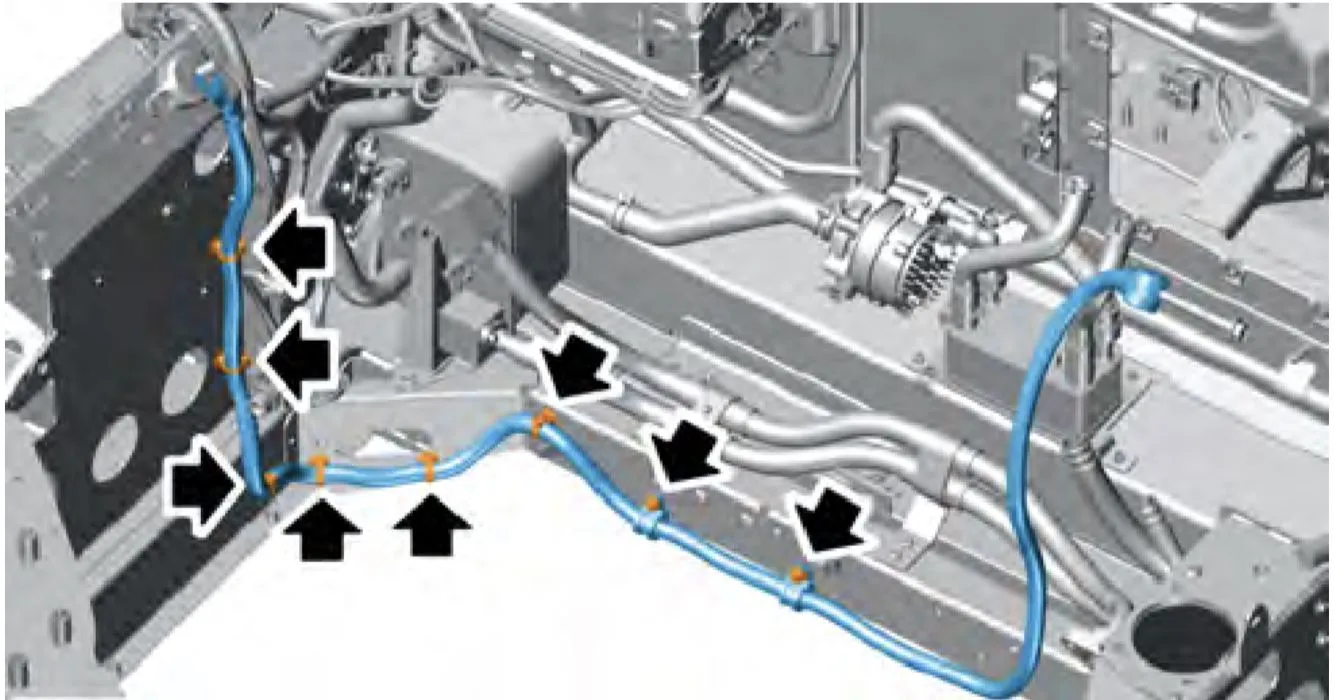

Both can be seen in this pic:

View attachment 21827

That leaves just the coolant radiator and the a/c condenser in the front centre.

That’ll teach me to assume it’s just a re-hashed Evora. 😁

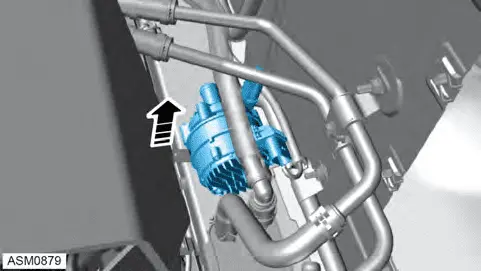

FYI the short cylindrical object next to the gearbox oil cooler (center right of your image) is an electric coolant pump.
Coolant pump


This cooling circuit also has its own thermostat and its own coolant reservoir tank in the engine bay. Seems to be separate from the engine cooling circuit entirely, though I can't be sure with the diagrams I have available.

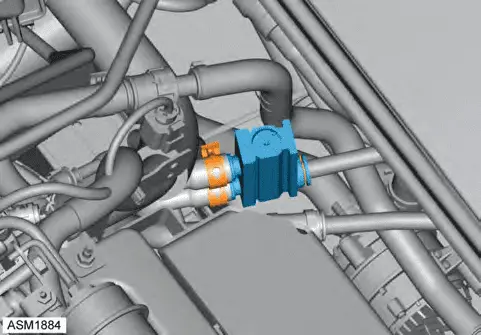

Thermostat

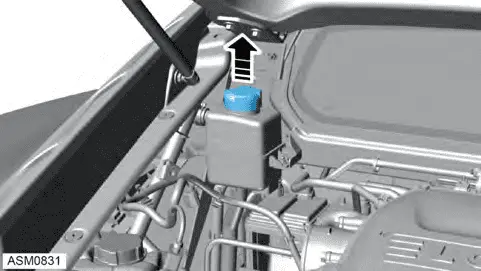

Coolant reservoir tank

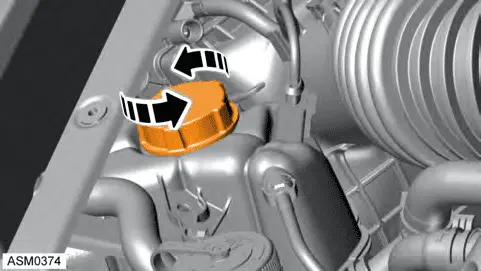

The main coolant reservoir tank for the engine is at the bottom left in the above image. A better view showing removal of the reservoir cap:

Yup. There’s also a separate oil pump for the gearbox oil cooling.
The small header tank at top left is for the chargecooler circuit, as per the Evora setup.
The Evora gearbox oil cooler was tee-ed off the engine coolant pipework. I’d assume this setup is the same?
As you say @Porter we’ll have to have a look at the plumbing of an actual car to work it out.
I’ll be able to have a look on Saturday 😉 (at last!).
